Prometheus

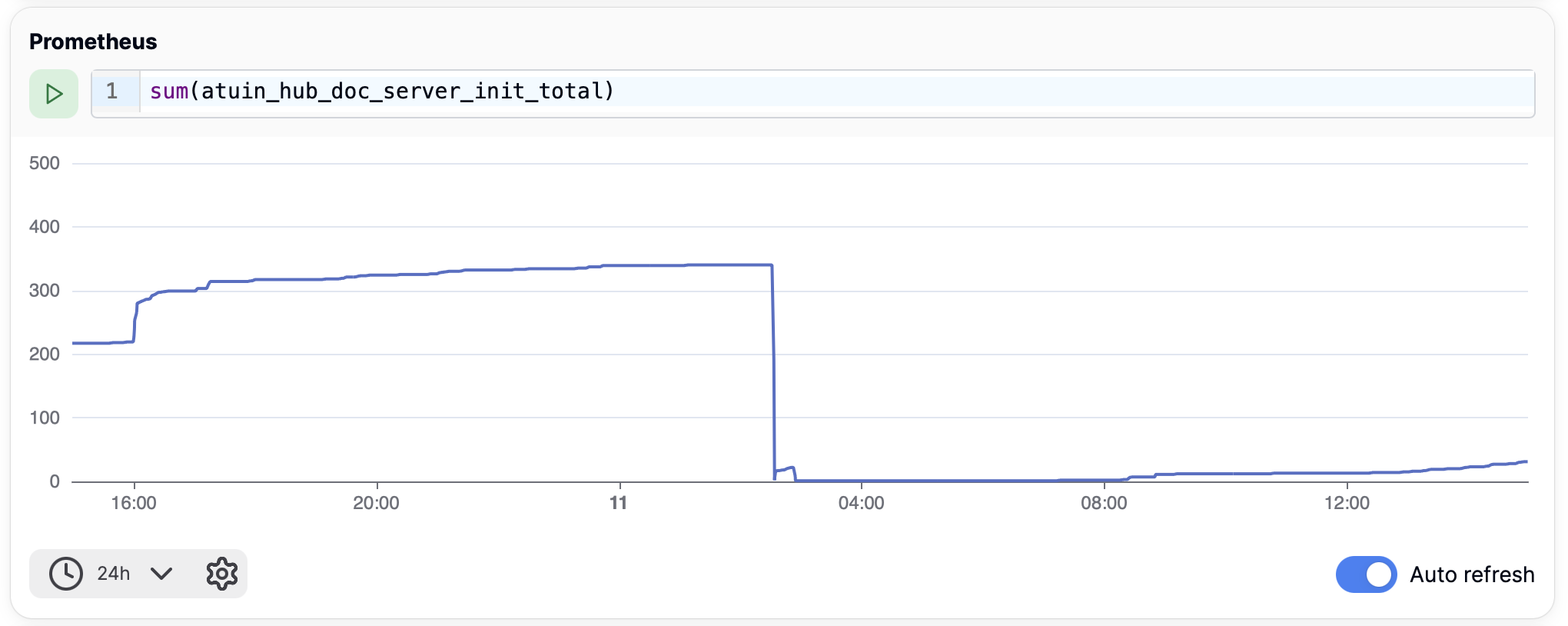

Use the Prometheus block to display a time series from a remote Prometheus server.

The server address can be configured in two ways

1. From the block settings
2. From the Atuin Desktop settings

This allows you to set a default endpoint, and then override it per-chart.

Block Output

Prometheus blocks produce structured output that can be accessed in templates after execution. See Block Output for general information on accessing block output.

Accessing Metrics Data

{%- set output = doc.named['my_prometheus_query'].output %}

{# Access series data #}
{% for series in output.series %}
  {{ series.name }}: {{ series.data | length }} data points
{% endfor %}

Output Fields

Field	Type	Description
results	array	All query results
first	object	The first result (convenience accessor)
series	array	Time series data from the first result
total_series	number	Total number of series across all results
result_count	number	Number of query results
query_executed	string	The PromQL query that was executed
time_range	object	Time range of the query (start, end, step)

Series Data Structure

Each series in the series array contains:

Field	Type	Description
name	string	Series name (metric labels)
data	array	Array of [timestamp, value] pairs
series_type	string	Chart type (e.g., "line")

Example Usage

{%- set output = doc.named['cpu_metrics'].output %}

{% if output.total_series > 0 %}
  Query: {{ output.query_executed }}
  Time range: {{ output.time_range.start }} to {{ output.time_range.end }}

  {% for series in output.series %}
  Series: {{ series.name }}
  Data points: {{ series.data | length }}
  {% endfor %}
{% endif %}
